The Most Common Thread Types Used in Fasteners

Introduction to Threading in Fasteners

Fasteners are essential components in nearly every mechanical, automotive, and construction application. While their primary purpose is to securely join materials, the effectiveness and reliability of fasteners are largely determined by the threading method used. Understanding the different types of thread configurations is crucial when selecting fasteners for specific applications.

In this article, we’ll explore the various threading methods used in fastener production, their characteristics, and how to choose the best type for your needs. Whether you’re sourcing fasteners for the automotive, construction, or renewable energy industries, this guide will help you make informed decisions about threading.

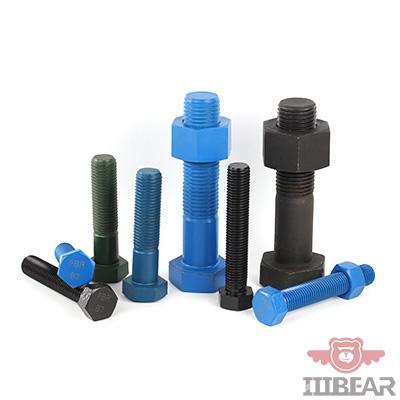

1. Types of Threads in Fasteners

The most common thread types used in fasteners include:

Metric Threads (M Threads)

Metric threads are based on the International System of Units (SI), which makes them standardized across many countries. The most widely used system for fasteners, the metric thread is identified by the letter “M” followed by the nominal diameter and the pitch, for example, M6x1.0, which represents a bolt with a 6mm diameter and a 1.0mm pitch.

Advantages:

Universally accepted in most countries
Easy to specify and widely available

Unified Threads (UNC, UNF)

Unified threads, or Unified National threads, are predominantly used in the United States and Canada. These threads are categorized into two main types: UNC (Unified National Coarse) and UNF (Unified National Fine). The key difference between them lies in the number of threads per inch, with UNC threads having fewer threads and UNF having more tightly spaced threads.

Advantages:

Well-suited for high-strength applications (UNF)
Good for general-purpose applications (UNC)
High compatibility in North America

BSW and BSP Threads

British Standard Whitworth (BSW) and British Standard Pipe (BSP) threads are primarily used in the UK and are often found in older machines and equipment. BSW threads feature a 55-degree thread angle, while BSP threads are commonly used for plumbing applications and are designed for creating a leak-proof seal.

Advantages:

BSW is often used in older mechanical equipment.
BSP is ideal for sealing applications in fluid systems.

Acme and Trapezoidal Threads

Acme threads are used in applications where power transmission is required, such as lead screws or linear actuators. They feature a trapezoidal profile, which provides strength and durability when converting rotational motion to linear motion.

Advantages:

High strength
Smooth motion transfer

2. Factors Influencing the Choice of Thread Type

When selecting the right thread type for a fastener, several factors should be considered:

Material Compatibility

The material being fastened plays a significant role in determining which thread type is most appropriate. For example, softer materials may benefit from finer threads to prevent stripping, while harder materials require coarser threads to ensure a stronger hold.

Load-Bearing Capacity

Fasteners used in high-load applications (e.g., automotive or aerospace) require strong threads that can withstand heavy stress. In such cases, fine threads like UNF or Acme may be more effective at providing a secure hold under pressure.

Environmental Conditions

Thread type also depends on environmental conditions such as temperature, humidity, and exposure to corrosive substances. Some threads may be more resistant to corrosion, while others may be designed for high-temperature or high-pressure environments.

3. How Threading Affects Fastener Performance

The threading method used in a fastener can significantly influence its performance in a given application. Coarse threads, for example, are typically better for applications where the fastener will be installed and removed frequently, as they are less likely to strip. Fine threads, on the other hand, are ideal for situations where a high level of precision is required, such as in the aerospace and medical industries.

The depth and angle of the threads also affect the fastener's performance. Deep threads are better suited for load-bearing applications, while shallow threads offer greater resistance to stripping.

4. Choosing the Right Thread for Your Application

When sourcing fasteners for your next project, it’s important to choose the right threading method based on the specific requirements of the application. Here are a few guidelines to help you make the best choice:

For General-Purpose Applications: Metric threads (M threads) or Unified Coarse (UNC) threads are typically sufficient for most applications, providing a reliable hold without the need for precision.
For High-Strength or Precision Applications: Fine threads (UNF or Acme) are ideal when high tensile strength or precision is necessary. These are often used in automotive, aerospace, and medical applications.
For Fluid and Gas Sealing: BSP threads are ideal for sealing applications in plumbing and fluid systems due to their ability to create tight, leak-proof connections.
For Power Transmission: Acme threads are excellent for transmitting motion in mechanical systems such as lead screws and actuators, where strength and durability are key.

Conclusion

The choice of threading in fasteners is a critical decision that affects the performance and durability of the final product. By understanding the different types of threads and how they impact the strength, precision, and usability of fasteners, you can ensure the success of your projects. Always consider the material, load requirements, and environmental conditions when choosing the right thread type for your fasteners.

By investing time in selecting the proper threading method, you can increase the longevity, reliability, and overall effectiveness of your fasteners in a wide range of applications.
