Self-tapping screws are essential fasteners used in a wide range of applications, from construction to electronics and automotive industries. These screws are designed to create their own hole in a material, eliminating the need for a pre-drilled pilot hole. However, choosing the right self-tapping screw for a specific job requires careful consideration of factors like material, size, and threading type. In this article, we will explore the various types of self-tapping screws and how to select the best one for your project.

Understanding Self-Tapping Screws

Self-tapping screws are typically used when fastening materials such as metal, plastic, or wood, without the need for additional components like nuts or washers. They are highly versatile and are available in several variations, including different head types, drive systems, and thread designs. The primary characteristic of a self-tapping screw is its ability to tap its own thread into the material, providing a secure hold without pre-drilling.

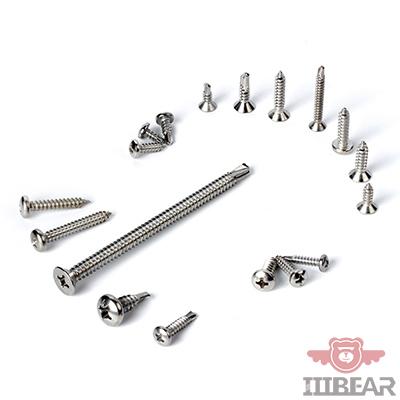

Types of Self-Tapping Screws

There are several types of self-tapping screws, each designed for specific materials and applications. The most common ones include:

1. Thread Cutting Screws
   These screws have a sharp, pointed tip designed to cut through the material. Thread cutting screws are typically used in metalworking applications, where the screw cuts its own threads in a thin sheet of metal or plastic. They are ideal for situations where the material cannot deform easily.

2. Thread Forming Screws
   Unlike thread cutting screws, thread forming screws do not remove material. Instead, they displace material to form a thread. This type of screw is ideal for softer materials such as plastics and aluminum. Thread forming screws are known for their ability to create strong, vibration-resistant connections without damaging the material.

3. Self-Drilling Screws
   Often referred to as “tek screws,” self-drilling screws come with a drill bit at the tip, allowing them to drill their own hole in the material. This makes them ideal for applications involving thick metal sheets or where a hole needs to be created without prior drilling.

4. Screws for Wood and Plastic
   For wood and plastic applications, specialized self-tapping screws with coarse threads and larger heads are used. These screws ensure a strong hold in wood while minimizing the risk of splitting the material. They are also widely used in furniture assembly and general woodworking tasks.

Key Factors in Selecting the Right Self-Tapping Screw

When selecting a self-tapping screw for your project, several factors need to be considered to ensure the best possible performance. These factors include:

1. Material Compatibility
   Choosing the right material is essential to ensure a secure hold. Stainless steel self-tapping screws are highly corrosion-resistant, making them ideal for outdoor and marine applications. On the other hand, zinc-coated or brass screws are perfect for applications requiring additional rust protection.

2. Size and Thread Pitch
   The size of the screw, including its diameter and length, plays a vital role in its effectiveness. Additionally, the thread pitch (the distance between each thread) must match the material being fastened. Fine threads are ideal for thin materials, while coarse threads work best for softer materials like wood or plastic.

3. Head Style
   The head style of the self-tapping screw can affect both its functionality and aesthetic. Common head styles include flat, pan, and round heads. Flat-head screws are commonly used for flush applications, while pan and round heads are preferred when a larger surface area is needed for increased holding power.

4. Drive Type
   Self-tapping screws come with a variety of drive types, such as Phillips, slotted, and Torx. The drive type determines the tool required for installation. Phillips heads are widely used, but for higher torque and precision, Torx heads are increasingly popular in industrial applications.

How to Choose the Right Self-Tapping Screw

To choose the right self-tapping screw, begin by evaluating the material you’re fastening. If you’re working with wood or soft plastics, thread forming screws with coarse threads will be more effective. For metals and hard materials, thread cutting or self-drilling screws are better options. Consider the material’s thickness, too—thicker materials often require longer screws with stronger threads to create a secure hold.

Next, take into account the environmental conditions of your application. If the screw will be exposed to moisture or corrosive environments, opt for screws made from corrosion-resistant materials like stainless steel or those with a protective coating.

Finally, ensure that the head style and drive type suit your installation tools and aesthetic requirements. A flat head will provide a more discrete finish, while a pan head may offer more robust holding strength.

Conclusion

Self-tapping screws are indispensable tools in a variety of industries, providing efficient fastening solutions without the need for pre-drilled holes. Understanding the different types of self-tapping screws and the factors that influence their performance will allow you to make informed decisions, ensuring your projects are completed successfully and with long-lasting results.

By considering factors such as material, size, thread pitch, head style, and drive type, you can select the perfect screw for your specific needs. Whether you're working on automotive projects, construction, or electronics, choosing the right self-tapping screw will ensure secure, efficient, and reliable fastening.
