Wedge lock washers are a critical component in the hardware industry, known for their ability to prevent loosening of bolted joints under extreme conditions. These washers are widely used in industries such as construction, automotive, aerospace, and heavy machinery, where vibration and dynamic loads are common. In this guide, we’ll explore the fundamentals of wedge lock washers, their applications, benefits, and best practices for installation.

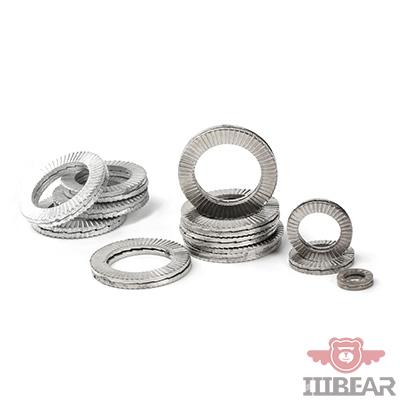

What Are Wedge Lock Washers?

Wedge lock washers are specialized fasteners designed to secure bolted joints by creating a locking mechanism that resists loosening caused by vibration, thermal expansion, or dynamic loads. Unlike traditional flat washers, wedge lock washers feature a unique wedge-shaped design that bites into both the bolt head/nut and the surface of the joint, ensuring a secure fit.

These washers are typically made from high-strength materials such as carbon steel, stainless steel, or alloy steel, making them suitable for heavy-duty applications. They are available in various sizes and specifications to meet DIN (Deutsches Institut für Normung), ANSI (American National Standards Institute), and ISO (International Organization for Standardization) standards.

Key Applications of Wedge Lock Washers

Wedge lock washers are indispensable in scenarios where bolted joints are subjected to high stress or vibration. Here are some common applications:

1. Construction Industry: Used in structural steel connections, bridges, and scaffolding to ensure long-term stability.

2. Automotive Sector: Ideal for securing engine components, suspension systems, and wheel assemblies.

3. Aerospace Engineering: Critical for maintaining the integrity of aircraft components under extreme conditions.

4. Heavy Machinery: Ensures the reliability of equipment such as cranes, excavators, and industrial presses.

By using wedge lock washers, industries can significantly reduce the risk of joint failure, enhancing safety and operational efficiency.

Benefits of Using Wedge Lock Washers

Wedge lock washers offer several advantages over traditional fastening methods:

1. Vibration Resistance: The wedge design prevents loosening even under severe vibration, making them ideal for dynamic environments.

2. Reusability: Unlike chemical adhesives or lock nuts, wedge lock washers can be reused without losing their effectiveness.

3. Corrosion Resistance: When made from stainless steel or coated materials, these washers provide excellent resistance to rust and corrosion.

4. Ease of Installation: No special tools or techniques are required, simplifying the installation process.

These benefits make wedge lock washers a cost-effective and reliable solution for securing critical joints.

How to Install Wedge Lock Washers

Proper installation is crucial to maximizing the performance of wedge lock washers. Follow these steps for optimal results:

1. Prepare the Joint: Ensure the surfaces of the bolted joint are clean and free from debris.

2. Position the Washer: Place the wedge lock washer between the bolt head/nut and the joint surface, ensuring the wedge faces the correct direction.

3. Tighten the Bolt: Use a torque wrench to tighten the bolt to the manufacturer’s recommended torque value. This ensures the wedge bites securely into the surfaces.

4. Inspect the Installation: After tightening, check the joint for any signs of misalignment or improper seating.

For high-stress applications, consider using a thread-locking compound in conjunction with wedge lock washers for added security.

Choosing the Right Wedge Lock Washer

Selecting the appropriate wedge lock washer for your application involves considering several factors:

1. Material: Choose a material that matches the environmental conditions (e.g., stainless steel for corrosive environments).

2. Size and Specifications: Ensure the washer size aligns with the bolt diameter and joint requirements.

3. Standards Compliance: Verify that the washers meet relevant industry standards such as DIN, ANSI, or ISO.

Consulting with a technical expert or supplier can help you make the right choice for your specific needs.

Conclusion

Wedge lock washers are a versatile and reliable solution for securing bolted joints in high-stress and high-vibration environments. Their unique design, combined with high-quality materials, ensures long-lasting performance and safety across various industries. By understanding their applications, benefits, and installation best practices, you can optimize your hardware solutions and prevent costly joint failures.
