In the world of manufacturing, every detail matters. Just as an artist paints every stroke on a canvas, engineers strive for the perfect fit of every part. Self-clinching studs are such a choice for engineers. They are not only small metal components, but also the key to ensuring the stability and reliability of the mechanical structure.
Self-clinching studs are critical fasteners used in various industries where reliable and secure assembly is paramount. These studs offer an efficient solution for joining metal sheets or panels without the need for additional welding or riveting. They are especially beneficial in applications where high vibration resistance and strong, permanent threads are needed. This article will explore the characteristics, benefits, applications, and considerations when using self-clinching studs in your next project.

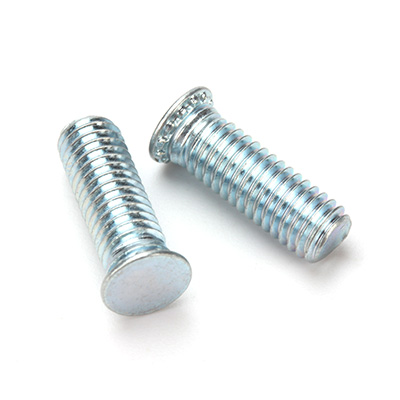

What Are Self-Clinching Studs?
Self-clinching studs are fasteners designed to create a strong, permanent attachment in thin metal sheets. Unlike traditional fasteners that require a nut and bolt, self-clinching studs are installed by pressing them into a hole in the sheet metal. As the stud is pressed into the hole, its unique design allows it to "clinched" into place, forming a permanent and secure threaded anchor. This makes them ideal for use in applications where space is limited, and a permanent, robust thread is required without the need for additional fastening components.
These studs are widely used in the automotive, aerospace, electronics, and other industries where metal sheets and thin materials are commonly used for assembly.
Benefits of Self-Clinching Studs
1. Ease of Installation
One of the primary benefits of self-clinching studs is the simplicity and efficiency of their installation. When used with the correct tools, they can be quickly pressed into place, allowing for high-speed assembly processes. This eliminates the need for secondary operations like welding or tapping threads, reducing both production time and costs.
2. Strong and Reliable Connection
Self-clinching studs provide an extremely strong connection. The design ensures that once the stud is installed, it won't loosen or pull out under normal usage conditions. This makes them particularly suitable for applications subjected to vibrations, such as automotive and aerospace industries. Their high resistance to shear forces makes them a reliable option for demanding applications.
3. No Need for Additional Fastening Components
Since the stud forms its own threaded anchor in the metal sheet, there’s no need for extra nuts or bolts, which can reduce the complexity and cost of an assembly. This also saves on material costs and space, as the self-clinching stud acts as both the fastener and the anchor.
4. Space-Efficient and Lightweight
Self-clinching studs are ideal for situations where space is at a premium. Their small profile allows them to be installed in thin materials without compromising the strength or integrity of the assembly. This makes them perfect for lightweight structures where minimizing bulk is important.
Applications of Self-Clinching Studs
Self-clinching studs are used in a wide variety of industries. Below are some of the primary sectors that rely on this versatile fastener:
1. Automotive Industry
In automotive manufacturing, self-clinching studs are often used in vehicle body construction, interior panels, and electrical components. These studs provide a quick and efficient method for assembling parts that need to be securely joined with high tensile strength and vibration resistance.
2. Aerospace and Aviation
In aerospace, self-clinching studs are crucial for assembling complex systems where both lightweight and high-strength connections are required. Their ability to hold up under extreme vibrations and thermal conditions makes them a popular choice for applications such as engine components, fuselages, and avionics.
3. Electronics and Electrical Equipment
The electronics industry frequently uses self-clinching studs for the assembly of enclosures, circuit boards, and other electrical components. Their use ensures that critical connections remain stable over time and resist loosening due to environmental factors like heat or vibrations.
4. Medical Devices
In the medical device industry, self-clinching studs are utilized to ensure the secure assembly of devices such as diagnostic equipment, surgical instruments, and monitoring systems. These fasteners meet stringent reliability requirements for medical applications, ensuring long-lasting performance and safety.
Material Considerations for Self-Clinching Studs
Self-clinching studs are available in a variety of materials to suit different applications. Common materials include:
- Stainless Steel: Offers excellent corrosion resistance, making it ideal for applications exposed to moisture or chemicals.
- Carbon Steel: A cost-effective option for general-purpose applications where corrosion resistance is not as critical.
- Aluminum: Lightweight and corrosion-resistant, aluminum studs are often used in applications where weight savings are a priority.
Choosing the right material for your self-clinching stud will depend on factors such as the environment in which it will be used, the required strength, and any specific regulatory requirements.
Key Considerations When Selecting Self-Clinching Studs
When selecting self-clinching studs, it’s essential to consider the following:
- Material Thickness: The thickness of the metal sheet into which the stud will be installed is critical. Self-clinching studs are designed for specific material thickness ranges, and selecting the wrong size can result in improper installation or a weakened connection.
- Thread Size: The thread size of the stud must match the requirements of the assembly to ensure a secure and functional connection.
- Load Requirements: Consider the forces and stresses the fastener will be subjected to, including tension, shear, and vibration.
- Environmental Conditions: Evaluate whether the fastener will be exposed to corrosive environments, extreme temperatures, or other challenging conditions.
Conclusion: Where to Find Self-Clinching Studs
Self-clinching studs are a versatile and reliable solution for a wide range of applications in industries such as automotive, aerospace, electronics, and medical devices. Their ease of installation, strength, and space-saving design make them indispensable in many manufacturing processes.
