When it comes to maintaining precise alignment and ensuring exact spacing between components, DIN 988 (P/PS) Shim Rings are a trusted solution across a wide range of industries. These thin, flat rings are designed for applications that require meticulous tolerance adjustments, such as in mechanical assemblies, automotive components, and industrial machinery. In this article, we will dive deep into the key features, applications, and benefits of using DIN 988 Shim Rings, helping you understand why they are crucial for high-performance systems.

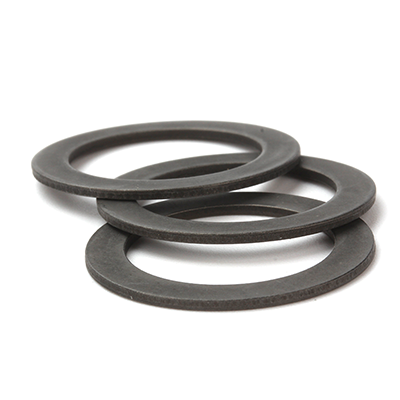

What Are DIN 988 (P/PS) Shim Rings?

DIN 988 Shim Rings are flat, circular discs used to adjust the spacing between mechanical parts, ensuring precise alignment and reducing wear in high-stress environments. These rings are available in different thicknesses, allowing for incremental adjustments without the need for custom parts. The "P/PS" designation indicates different tolerance levels and specific applications within the DIN 988 standard.

Material Composition:
DIN 988 Shim Rings are typically made from high-grade steel, stainless steel, or brass. Steel and stainless steel versions offer excellent strength and corrosion resistance, making them suitable for both indoor and outdoor applications. Brass shim rings are ideal for applications that require electrical conductivity or where non-magnetic properties are needed.

Tolerance and Precision:
What sets DIN 988 Shim Rings apart is their adherence to tight tolerance standards. These rings are manufactured with extremely precise thickness measurements, allowing them to be used in applications where even the smallest misalignment can result in mechanical failure.

Key Applications of DIN 988 (P/PS) Shim Rings

DIN 988 Shim Rings are indispensable in many industries where component alignment and spacing are critical. Below are some of the most common application areas:

1. Automotive Industry:
In the automotive sector, precise alignment of components such as gears, shafts, and bearings is essential to ensure smooth operation and reduce wear. DIN 988 Shim Rings are used extensively in engines, transmissions, and suspension systems to fine-tune spacing and minimize friction.

2. Industrial Machinery:
In heavy machinery, improper spacing between rotating or sliding parts can lead to inefficiency, increased wear, and even system breakdowns. DIN 988 Shim Rings offer an easy and cost-effective solution for adjusting spacing in gearboxes, pumps, and compressors.

3. Electronics and Robotics:
In precision-driven fields like electronics and robotics, maintaining the exact distance between moving components is crucial. DIN 988 Shim Rings help in aligning circuit boards, sensors, and actuators, ensuring accurate performance in robotic arms and other automated systems.

4. Aerospace Industry:
Aerospace components are subject to extreme stresses, and even the slightest misalignment can lead to catastrophic failure. DIN 988 Shim Rings provide the necessary precision for aligning parts in aircraft engines, landing gear systems, and control surfaces, ensuring reliability and safety in flight.

Benefits of Using DIN 988 (P/PS) Shim Rings

DIN 988 Shim Rings offer several advantages that make them indispensable in various industries:

1. Precision in Alignment:
Manufactured to strict tolerance standards, DIN 988 Shim Rings allow for minute adjustments, ensuring that all components are perfectly aligned. This reduces wear and tear, extending the lifespan of the machinery or system.

2. Versatility:
DIN 988 Shim Rings are available in a wide range of materials and thicknesses, making them suitable for various environments, from high-stress industrial settings to sensitive electronic devices.

3. Easy Installation:
These shim rings are easy to install and remove, allowing for quick adjustments during assembly or maintenance. This ease of use makes them a practical solution for minimizing downtime and reducing maintenance costs.

4. Durability:
DIN 988 Shim Rings, especially those made from stainless steel or brass, offer excellent corrosion resistance, ensuring that they perform well even in harsh environments. Their durable construction allows them to withstand high levels of stress without deforming.

5. Cost-Effective Solution:
Compared to custom-made components, using shim rings is a highly cost-effective way to achieve precise alignment. By stocking a range of DIN 988 Shim Rings in different thicknesses, manufacturers can make quick adjustments without the need for expensive parts or specialized tooling.

Selecting the Right DIN 988 (P/PS) Shim Ring for Your Application

When selecting DIN 988 Shim Rings, it is important to consider the specific requirements of your application. Here are a few key factors to keep in mind:

1. Material Selection:
The material you choose should be based on the operating conditions of your system. For high-stress environments or outdoor applications, stainless steel offers excellent strength and corrosion resistance. Brass shim rings are ideal for applications where electrical conductivity or non-magnetic properties are required.

2. Thickness:
DIN 988 Shim Rings come in various thicknesses, typically ranging from 0.1mm to 1mm. Selecting the appropriate thickness will depend on the precision required in your assembly. For fine-tuning, thinner shim rings can be stacked to achieve the desired spacing.

3. Operating Conditions:
Consider the temperature, pressure, and environmental factors when selecting shim rings. Stainless steel is often the best choice for high-temperature or corrosive environments, while brass may be more suitable for applications requiring electrical conductivity.

4. Tolerance Levels:
Ensure that the shim rings meet the necessary tolerance levels for your application. DIN 988 (P/PS) Shim Rings are known for their precision, but selecting the correct tolerance class is essential for optimal performance in high-precision systems.

Conclusion: Optimize Your Alignment with DIN 988 (P/PS) Shim Rings

DIN 988 (P/PS) Shim Rings are an essential component for ensuring precision and reliability in a wide range of industrial applications. Whether you need to fine-tune the spacing in automotive systems, industrial machinery, or aerospace components, these shim rings offer a practical and cost-effective solution. With their high tolerance levels, durable materials, and easy installation, DIN 988 Shim Rings are a must-have for any application that demands accuracy and long-term performance.

To find the right DIN 988 Shim Rings for your needs, explore our fastener e-commerce platform, where you can browse a variety of sizes and materials to suit your specific requirements. Ensure the longevity and efficiency of your mechanical systems by choosing high-quality DIN 988 Shim Rings for your next project.
