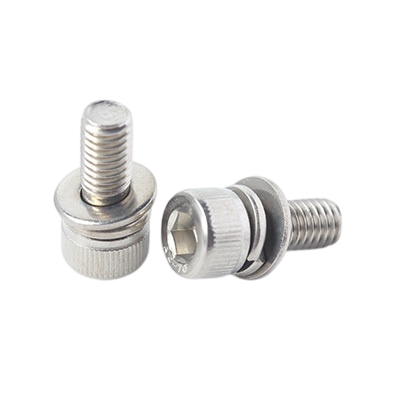

Hexagon socket head cap screws (also known as Allen bolts or socket head screws) are a popular type of fastener commonly used in applications where a secure, strong connection is required. Their unique design, featuring a hexagonal recessed socket in the screw head, allows for precise tightening and greater torque compared to traditional screws with external drives. This article delves into the features, applications, and advantages of hexagon socket head cap screws.

Key Features of Hexagon Socket Head Cap Screws

1. Hexagonal Drive The defining feature of these screws is the hexagonal socket in the head. This design enables the use of an Allen wrench (hex key) for tightening and loosening, allowing for a high torque application. The recessed drive minimizes the risk of stripping the head, even with frequent use.

2. Compact Head Design Hexagon socket head cap screws have a cylindrical, low-profile head, which takes up less space than screws with external drives like slotted or Phillips heads. This compact design makes them suitable for applications with space constraints, where the head of the fastener must sit flush or below the surface.

3. Material Choices Hex socket screws are available in a variety of materials, each suited to specific applications:

   • Carbon Steel: Used in general applications where high strength is required but corrosion resistance is not critical.
   • Stainless Steel: Provides excellent corrosion resistance, making these screws ideal for outdoor or corrosive environments, such as marine or chemical industries.
   • Alloy Steel: Known for high strength and durability, making it ideal for heavy-duty applications.
   • Brass, Titanium, and Other Materials: Specialized materials like brass are used in decorative or electrical applications, while titanium offers strength and corrosion resistance in high-performance environments such as aerospace.

4. Thread Types Available in both coarse and fine threads, hexagon socket head cap screws can accommodate a variety of load-bearing and fitting requirements. Fine threads provide better tensile strength and holding power, while coarse threads are more suitable for quick assembly and disassembly.

5. Precision Engineering These screws are manufactured with high precision, ensuring consistent thread engagement and exact dimensions. This is crucial for applications where tight tolerances are necessary, such as in high-performance machinery or critical structural assemblies.

Common Applications of Hexagon Socket Head Cap Screws

1. Mechanical Engineering Hexagon socket head cap screws are widely used in mechanical systems, including engines, gearboxes, and machinery assemblies. Their high strength and ability to withstand significant torque make them ideal for securing components subjected to heavy loads and vibration.

2. Automotive Industry In automotive applications, these screws are used in areas where space is limited and precision is essential, such as engine assemblies, transmission systems, and brake components. Their reliability and compact size ensure secure fastening in critical areas.

3. Aerospace Aerospace applications often demand lightweight, high-strength fasteners, and hexagon socket head cap screws fit the bill, especially when made from materials like titanium or high-grade stainless steel. These screws are used in aircraft engines, structural components, and landing gear systems.

4. Electronics Hex socket screws are commonly found in the electronics industry, particularly in cases where space is limited and precision assembly is critical. They are used to secure circuit boards, enclosures, and small mechanical assemblies in electronic devices and instruments.

5. Robotics and Automation Robotics and automation systems require precision engineering and reliable fastening solutions. Hexagon socket head cap screws are used extensively in robotic joints, actuators, and control systems, where secure connections are critical for performance and safety.

6. Renewable Energy In the renewable energy sector, hex socket screws are employed in wind turbines, solar panel installations, and other sustainable energy systems. Their high strength and corrosion resistance are essential in outdoor and exposed environments.

7. Medical Equipment Medical devices and instruments require fasteners that offer precise engagement, resistance to wear, and the ability to withstand sterilization processes. Hexagon socket screws, particularly those made from stainless steel or titanium, are frequently used in the assembly of medical equipment.

8. Construction Construction and building industries utilize these screws for structural applications, such as fastening metal components, brackets, and frameworks. Their strength and ability to resist loosening under vibration are key factors in their widespread use in structural and heavy-duty applications.

Advantages of Hexagon Socket Head Cap Screws

1. High Torque Application The hexagonal socket design allows for greater torque to be applied during installation, resulting in a stronger and more secure connection. This feature is particularly useful in high-load applications where a reliable fastener is essential.

2. Compact and Aesthetic Design The low-profile head of hexagon socket cap screws makes them ideal for situations where the screw head needs to sit flush with or below the surface of the workpiece. This is often important in precision engineering and aesthetic design.

3. Reduced Risk of Stripping Compared to slotted or Phillips screws, hexagon socket head screws are less likely to strip during installation or removal, especially when high torque is applied. This makes them suitable for repeated use in disassembly and reassembly processes.

4. Corrosion Resistance When made from stainless steel or treated with protective coatings, hexagon socket head screws offer excellent resistance to corrosion, making them ideal for outdoor, marine, and chemically exposed environments.

5. Precision and Versatility Available in a wide range of sizes, lengths, and materials, hexagon socket screws can be used in a variety of applications, from light-duty to heavy-duty assemblies. Their precision manufacturing ensures reliable performance in critical applications.

6. Ease of Installation The use of an Allen key or hex driver makes these screws easier to install in confined spaces or areas where a traditional screwdriver might not fit. Their design also allows for automation in assembly lines, where precision fastening is required.

Conclusion

Hexagon socket head cap screws are a versatile, high-strength fastening solution used across a wide range of industries. Their design offers a number of advantages, including the ability to apply high torque, resistance to stripping, and a compact, aesthetic profile. Whether in the automotive industry, aerospace, electronics, or heavy machinery, these screws provide reliable fastening for critical applications. With a variety of materials and finishes available, they are suited for environments ranging from high-stress mechanical systems to corrosion-prone outdoor installations.
