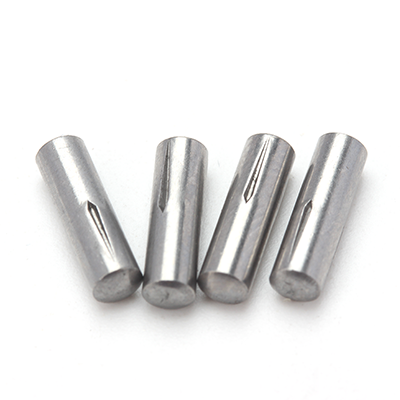

DIN 1474 grooved pins are a critical fastener type used for reliable and precise positioning of mechanical components in numerous industrial applications. These half-length reverse-taper grooved pins are designed with unique grooving patterns that provide excellent resistance to both rotational and axial movement, making them ideal for use in high-stress environments where components must remain securely in place.

What Are DIN 1474 Grooved Pins?

DIN 1474 grooved pins are manufactured to meet the German DIN standard, ensuring consistency and high quality across production. These pins feature a reverse-tapered body with partial grooving, allowing them to offer increased grip and interference within the pinholes. The reverse taper ensures that the pin is easier to insert but harder to remove, providing a secure and permanent fastening solution.

The design of DIN 1474 pins makes them highly resistant to loosening under vibration or impact, and they are often used in machinery, automotive systems, and electrical components. Their construction allows for easy installation, often requiring only a simple press fit without additional hardware such as nuts or washers.

Materials and Strength of DIN 1474 Grooved Pins

DIN 1474 grooved pins are typically manufactured from high-strength materials such as carbon steel or stainless steel. Carbon steel pins offer excellent shear strength, making them suitable for applications where high loads are involved. Stainless steel options are preferred in environments where corrosion resistance is critical, such as in marine, chemical, or outdoor applications.

The half-length grooving ensures that only a portion of the pin is deformable under load, while the reverse taper provides a tight fit. This makes DIN 1474 pins a versatile option for engineers looking for a fastening solution that provides both flexibility during installation and robustness in performance.

Applications of DIN 1474 Grooved Pins in Key Industries

DIN 1474 half-length reverse-taper grooved pins play a vital role in numerous industries. Some of the most common applications include:

• Automotive Industry: These pins are frequently used to fasten components within engines, transmissions, and chassis. The reverse-taper design helps ensure that parts remain securely aligned, even under the heavy vibration and mechanical stresses found in vehicles.
• Machinery and Manufacturing: In industrial equipment, DIN 1474 grooved pins are often used to align shafts, gears, and bearings, ensuring that moving parts are held in precise positions. Their resistance to rotational movement is particularly useful in equipment subject to cyclical or continuous stress.
• Electrical and Electronics: In electronic devices, grooved pins are used to secure components to circuit boards or enclosures, providing stable electrical connections while withstanding vibrations during operation.

Installation and Maintenance Tips for DIN 1474 Grooved Pins

To achieve optimal performance from DIN 1474 grooved pins, follow these best practices during installation and maintenance:

• Press Fit Installation: Grooved pins are designed for press-fit installation. Ensure that the pinhole matches the diameter of the pin for a tight, interference fit. Proper alignment is crucial to avoid damaging the pin or the component.
• Removal: Although designed to resist loosening, DIN 1474 grooved pins can be removed using specialized pin removal tools or a controlled punch-out process. Care should be taken to avoid bending or damaging the pin during removal.
• Corrosion Resistance: In environments where corrosion is a concern, consider using stainless steel grooved pins to prevent rust and degradation over time. Regular inspection of pins in harsh conditions will help prevent unexpected failures.

In conclusion, DIN 1474 grooved pins, with their half-length reverse-taper grooving, are an essential fastener solution for industries requiring secure, reliable component alignment. From automotive systems to heavy machinery and electronics, these pins offer exceptional strength and stability, making them a go-to choice for engineers and manufacturers. Visit our fastener marketplace to explore a wide selection of DIN 1474 grooved pins and other high-quality fastening solutions.
