DIN 472 retaining rings, also known as internal circlips, are crucial components in mechanical systems that provide axial retention for parts located inside bores. These rings are designed to snap into a groove within a bore, ensuring that components stay securely in place. Often used in conjunction with shafts, gears, and bearings, DIN 472 retaining rings offer a space-efficient and highly reliable fastening solution, making them ideal for a wide range of industries, including automotive, aerospace, construction, and manufacturing.

In this article, we’ll take a closer look at DIN 472 retaining rings for bores, their key features, applications, and why they are an essential component in any high-performance mechanical assembly.

What Are DIN 472 Retaining Rings?

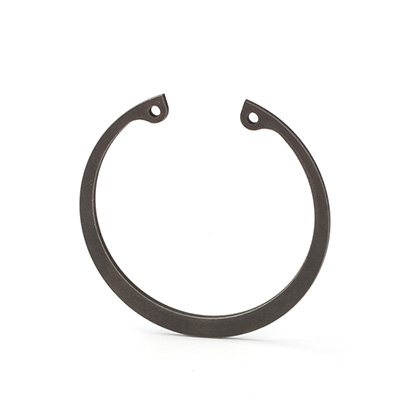

DIN 472 retaining rings are circular metal fasteners specifically designed for insertion into a groove inside a bore. These internal circlips are manufactured according to the DIN 472 standard, ensuring uniform dimensions and performance across various sizes. When placed in the bore’s groove, they create an axial stop that prevents other components, such as bearings or seals, from moving out of position.

Typically made from materials such as spring steel, stainless steel, or carbon steel, DIN 472 retaining rings are known for their strength, flexibility, and resistance to wear. Their design includes two lugs with holes that allow for easy installation and removal using special circlip pliers.

Applications of DIN 472 Retaining Rings

DIN 472 retaining rings are used across a wide array of applications where secure, internal axial retention is necessary. Here are some industries and scenarios where these internal circlips prove invaluable:

1. Automotive Systems: In the automotive industry, DIN 472 retaining rings are often employed to retain bearings within wheel hubs, transmissions, and gearboxes. These rings prevent components from shifting due to vibrations or high-speed rotations, ensuring long-lasting performance and safety.

2. Aerospace and Aviation: Aircraft components must endure extreme loads and stresses. DIN 472 retaining rings are used in critical parts of aircraft engines, control mechanisms, and turbines, where precision and reliability are of the utmost importance.

3. Heavy Machinery and Industrial Equipment: DIN 472 retaining rings are used in industrial machines such as compressors, motors, and pumps. Their robust design enables them to handle the heavy loads and constant wear common in such environments.

4. Electronics and Robotics: Smaller DIN 472 retaining rings are also utilized in precision electronics and robotic applications, where they secure components in confined spaces without taking up excessive room or adding unnecessary weight.

Benefits of DIN 472 Retaining Rings

There are several reasons why DIN 472 retaining rings are a preferred choice for engineers and manufacturers when it comes to internal axial retention. Here are some of the key benefits:

• Space Efficiency: One of the main advantages of using DIN 472 retaining rings is their ability to provide axial retention without the need for bulky fasteners or additional components. This makes them ideal for compact assemblies.

• Strong Axial Retention: Once installed, DIN 472 retaining rings offer a high level of resistance to axial forces, ensuring that components remain securely in place even under heavy loads or vibrations.

• Ease of Installation and Removal: These internal circlips are easily installed or removed using circlip pliers. The presence of lugs with holes makes it straightforward to insert or remove the rings as needed, reducing downtime during maintenance or repairs.

• Durable Materials: Manufactured from high-strength materials like spring steel or stainless steel, DIN 472 retaining rings are built to withstand demanding operational environments. They are also corrosion-resistant, which is essential in applications exposed to moisture, chemicals, or extreme temperatures.

• Cost-Effective Solution: With their simple design and ease of use, DIN 472 retaining rings reduce the need for more complex fastening systems, which in turn minimizes costs. These rings help streamline the assembly process and lower the overall cost of production.

Choosing the Right DIN 472 Retaining Ring

Selecting the right DIN 472 retaining ring for your application depends on several factors, including the size of the bore, material requirements, and load conditions. Here’s what to consider when making your selection:

1. Bore Size Compatibility: The DIN 472 standard specifies exact sizes for different bore diameters, so it’s essential to match the retaining ring to the correct bore size for a proper fit.

2. Material Choice: Depending on the environment in which the retaining ring will be used, you may need to choose between spring steel, carbon steel, or stainless steel. For general industrial applications, spring steel provides excellent tensile strength, while stainless steel is ideal for corrosive or high-humidity environments.

3. Load and Vibration: Consider the operational conditions that the retaining ring will be subjected to. For high-load or high-vibration environments, a stronger material like spring steel is preferable, while lighter applications may benefit from more flexible options.

4. Installation Tools: Ensure you have the appropriate circlip pliers for the size of the retaining ring you are using. Proper installation is crucial for ensuring the effectiveness of the retaining ring in securing components.

Conclusion

DIN 472 retaining rings for bores are indispensable components in mechanical systems where internal axial retention is required. Their compact design, ease of installation, and robust performance make them an ideal solution for industries ranging from automotive to aerospace.

Whether you’re designing a new machine or maintaining industrial equipment, choosing DIN 472 retaining rings ensures that your components remain securely in place. Explore our wide selection of DIN 472 retaining rings on our fastener e-commerce platform to find the perfect fit for your application.
