DIN 471 retaining rings for shafts, also known as circlips or snap rings, are essential components in various mechanical assemblies, providing a reliable and secure method for axial retention of components on shafts. Designed according to the DIN 471 standard, these retaining rings ensure precision, strength, and consistent performance, making them a top choice in industries ranging from automotive and aerospace to manufacturing and heavy machinery.

In this article, we’ll explore the key features, applications, and advantages of DIN 471 retaining rings for shafts, as well as their role in maintaining the integrity of mechanical systems.

What Are DIN 471 Retaining Rings for Shafts?

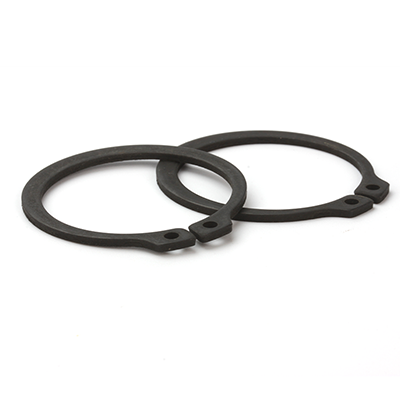

DIN 471 retaining rings, also called external circlips, are circular metal fasteners designed to fit into a groove on a shaft. These rings are snapped into place, providing axial support to prevent components from moving out of position. Unlike traditional fasteners, retaining rings do not require additional hardware like screws or bolts, making them an efficient and space-saving solution for shaft retention.

Manufactured from high-quality materials such as spring steel or stainless steel, DIN 471 retaining rings offer exceptional durability and corrosion resistance. Their design includes a small gap and lugs with holes that facilitate installation and removal using circlip pliers.

Applications of DIN 471 Retaining Rings

DIN 471 retaining rings are used in a wide range of applications where axial retention of components on shafts is necessary. Here are some of the most common industries and uses:

1. Automotive Industry: In the automotive sector, DIN 471 retaining rings are frequently used in transmission systems, axle assemblies, and steering mechanisms. Their ability to handle high loads and vibrations ensures that components stay securely in place even in demanding conditions.

2. Aerospace and Defense: DIN 471 retaining rings play a crucial role in aerospace applications, where precision and reliability are critical. From securing turbine shafts to holding aircraft control mechanisms in place, these retaining rings help ensure the safety and efficiency of aerospace equipment.

3. Manufacturing and Machinery: In industrial machinery and heavy equipment, DIN 471 retaining rings are used to secure gears, bearings, and other rotating components. Their simple yet effective design helps reduce assembly time and simplifies maintenance.

4. Electronics and Appliances: These retaining rings are often found in small mechanical devices, such as motors, appliances, and electronics, where they secure rotating components on shafts without the need for bulky hardware.

Key Benefits of Using DIN 471 Retaining Rings

DIN 471 retaining rings offer numerous advantages over traditional fasteners in terms of performance, ease of use, and durability. Here’s why they’re a preferred choice in many applications:

• Space-Efficient Design: Retaining rings provide secure axial retention without the need for additional fastening hardware, making them ideal for compact assemblies where space is at a premium.

• Durability and Strength: Made from high-quality materials, DIN 471 retaining rings are designed to withstand heavy loads and harsh environments. Spring steel rings offer high tensile strength, while stainless steel versions provide excellent corrosion resistance for applications in moisture-prone or outdoor settings.

• Ease of Installation and Removal: Installing DIN 471 retaining rings is quick and easy with the use of circlip pliers. The lugs on the rings allow for precise placement in the shaft groove, and removal is equally straightforward.

• Cost-Effective Solution: Retaining rings eliminate the need for additional fasteners, reducing both material costs and assembly time. This makes them a cost-effective solution for manufacturers looking to optimize production processes.

• Reliable Performance: The secure fit of DIN 471 retaining rings ensures that components remain firmly in place, even in high-vibration or high-load applications. This reliability helps prevent mechanical failure and reduces the need for frequent maintenance.

How to Select the Right DIN 471 Retaining Rings

Choosing the correct DIN 471 retaining ring for your application involves considering several key factors, including material, size, and load requirements. Here’s what to keep in mind when selecting retaining rings:

1. Material Selection: Spring steel is the most common material for DIN 471 retaining rings due to its high strength and resilience. However, if corrosion resistance is a concern, stainless steel retaining rings are a better choice for environments exposed to moisture or chemicals.

2. Shaft Diameter: Ensure that the retaining ring matches the exact diameter of the shaft. DIN 471 standards specify the dimensions for different shaft sizes, so it’s crucial to verify compatibility before installation.

3. Load and Vibration Requirements: Consider the operational environment, including the load and vibration levels that the retaining ring will be subjected to. For high-stress applications, spring steel retaining rings are more suitable, while for corrosion-prone environments, stainless steel versions provide additional protection.

4. Installation Tools: While DIN 471 retaining rings are easy to install with standard circlip pliers, make sure you have the appropriate tools for the size of the ring and the specific application.

Conclusion

DIN 471 retaining rings for shafts offer a simple yet highly effective solution for axial retention in a variety of industrial applications. Their space-saving design, ease of installation, and reliable performance make them a preferred choice for engineers and manufacturers seeking to optimize mechanical assemblies.

Whether you’re working on automotive systems, aerospace equipment, or industrial machinery, DIN 471 retaining rings deliver the strength and durability needed to keep components securely in place. Visit our fastener e-commerce platform to explore our range of DIN 471 retaining rings and find the perfect fit for your project.
