Introduction to Spring Washers

Spring washers, also known as split washers, are specialized fasteners designed to provide added tension and prevent loosening in bolted connections. These washers are particularly useful in environments where vibration or dynamic loads are present, such as automotive, machinery, and aerospace industries. The unique shape of spring washers allows them to exert a continuous force against the fastener, ensuring a secure, tight connection that resists loosening over time. In this article, we will explore the features, materials, applications, and best practices for using spring washers to enhance the reliability and safety of your fastened systems.

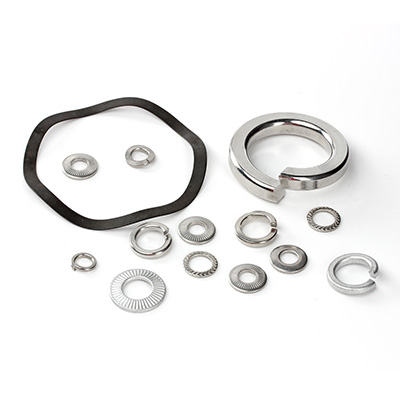

What Are Spring Washers?

A spring washer is a type of washer designed with a split or gap in its circular form, which allows it to function like a spring. When compressed between a fastener and the surface, the washer creates tension that helps maintain a tight connection, preventing the fastener from loosening due to vibration, shock, or thermal expansion. Unlike plain washers, which only distribute the load, spring washers provide additional force that keeps the fastener tight and secure, making them ideal for applications where the connection is subject to movement or external forces.

Materials Used in Spring Washers

Spring washers are available in various materials to suit different environments and performance requirements. The most common materials include:

1. Carbon Steel Spring Washers: Carbon steel is one of the most widely used materials for spring washers due to its strength and cost-effectiveness. It is commonly used in general-purpose applications where high levels of corrosion resistance are not required.

2. Stainless Steel Spring Washers: Stainless steel spring washers offer superior resistance to corrosion, making them suitable for harsh environments such as marine, food processing, and chemical industries. Their durability and resistance to rust make them a popular choice for both indoor and outdoor applications.

3. Spring Steel Washers: Spring steel is a high-carbon steel material that is specifically designed to retain its spring-like properties under high-stress conditions. These washers are typically used in high-performance applications, such as automotive and aerospace, where the washer needs to maintain its elasticity and load-bearing capacity.

4. Brass Spring Washers: Brass is a non-ferrous metal that offers good corrosion resistance and is often used in electrical and plumbing applications. Brass spring washers are also preferred in applications that require low magnetic permeability.

5. Plastic Spring Washers: For lighter-duty applications or when electrical insulation is required, plastic spring washers made from materials like nylon or polycarbonate can be used. These washers are ideal for electronics, electrical systems, and environments where rust resistance is important.

Applications of Spring Washers

Spring washers are used in a wide variety of industries and applications where secure, vibration-resistant connections are essential. Some of the most common uses include:

1. Automotive: In the automotive industry, spring washers are often used to secure critical components such as engine parts, transmission systems, and suspension assemblies. Their ability to withstand vibration and dynamic loads makes them ideal for ensuring the reliability of fasteners in vehicles.

2. Construction and Heavy Machinery: In construction and heavy machinery, spring washers are used to secure bolts and nuts on equipment that experience frequent movement and vibration. These washers help maintain the integrity of the connection, even under high stress and fluctuating loads.

3. Aerospace: Spring washers play a crucial role in aerospace applications, where vibration and temperature changes can cause fasteners to loosen. These washers ensure the stability of critical components, such as aircraft engines and structural elements, preventing failures that could compromise safety.

4. Electronics and Electrical Systems: In electronics, spring washers are used to secure sensitive components in circuits, providing both tension and electrical isolation. Plastic or nylon spring washers are often used in these applications to prevent short circuits and maintain system integrity.

5. Oil and Gas: In the oil and gas industry, where equipment is subjected to harsh environments and constant vibration, spring washers are used to secure flanges, bolts, and valves. Their corrosion-resistant properties help ensure long-lasting, reliable connections in offshore rigs, pipelines, and drilling equipment.

Benefits of Using Spring Washers

1. Prevention of Loosening: The primary benefit of spring washers is their ability to prevent fasteners from loosening under vibration or dynamic loads. The constant force exerted by the washer helps maintain the tightness of the connection, reducing the risk of failure.

2. Improved Vibration Resistance: Spring washers are especially effective in environments where vibration is a constant issue. Whether in machinery, automotive, or aerospace applications, these washers ensure that fasteners remain securely in place, even under continuous motion.

3. Increased Load Distribution: Like plain washers, spring washers help distribute the load of the fastener more evenly, reducing stress concentrations and preventing damage to the materials being fastened.

4. Corrosion Resistance: Stainless steel and other corrosion-resistant materials make spring washers ideal for use in environments exposed to moisture, chemicals, or extreme temperatures. Their ability to resist rust ensures long-lasting performance, even in challenging conditions.

5. Cost-Effective and Reliable: Compared to other vibration-resistant solutions, spring washers are relatively inexpensive and easy to install, making them a cost-effective choice for industries that require reliable fastener security.

Best Practices for Using Spring Washers

To ensure that spring washers perform optimally, it’s important to follow proper installation and usage guidelines:

1. Choose the Right Size: Always select a spring washer that matches the size and specifications of the fastener it will be used with. A washer that is too small or too large may not provide the necessary tension to secure the fastener effectively.

2. Correct Installation: Spring washers should be installed with the split facing upwards, so that the tension is directed toward the fastener. Ensure that the washer is placed between the fastener and the material being fastened for optimal performance.

3. Inspect for Wear: Regularly inspect spring washers for signs of wear or deformation, especially in applications that experience high levels of vibration or stress. Replacing worn washers can prevent failure and ensure the longevity of the fastener connection.

4. Avoid Over-tightening: While spring washers exert force to maintain tension, over-tightening the fastener can damage both the washer and the materials being fastened. Tighten the fastener to the recommended torque specification to ensure proper function.

Conclusion

Spring washers are an essential fastener for securing connections and preventing loosening in high-vibration environments. Whether you are working in the automotive, aerospace, construction, or oil and gas industries, spring washers provide a reliable, cost-effective solution to ensure the integrity of your fastened systems. By selecting the right material, size, and installation method, you can maximize the performance and longevity of your spring washers.
