Introduction to Serrated Lock Washers

Serrated lock washers are essential fasteners used in various applications to prevent loosening under vibration and dynamic loads. These washers are designed with a series of serrations or teeth on the inner or outer surface, which bite into the surfaces of the fastener and the material being secured. This unique design provides resistance against rotation, ensuring that the fastener stays securely in place, even in high-vibration environments. Serrated lock washers are widely used in industries such as automotive, construction, aerospace, and electronics. In this article, we will explore the features, benefits, applications, and best practices for using serrated lock washers to achieve reliable and long-lasting connections.

What Are Serrated Lock Washers?

A serrated lock washer is a type of locking washer designed to prevent a fastener from loosening. It typically features serrated (or toothed) edges on one side, which are either placed on the inner or outer perimeter of the washer. The serrations engage with the fastener and the surface it is securing, creating a frictional grip that helps resist the rotational force caused by vibrations or mechanical stress.

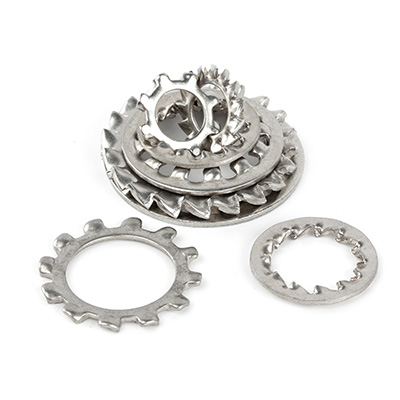

There are two primary types of serrated lock washers:

1. Internal Serrated Lock Washers: These washers have serrations on the inside diameter. They are used when the fastener is threaded into a hole, and the serrations grip the threads to prevent loosening.

2. External Serrated Lock Washers: These washers have serrations on the outside diameter. They are typically used when securing a nut or bolt to a flat surface, and the serrations engage with the material being fastened to resist loosening.

Both types of serrated lock washers perform the same function—securing the fastener by increasing friction and providing resistance against rotation.

Materials Used in Serrated Lock Washers

Serrated lock washers are made from various materials, depending on the application and environmental conditions. The material selected must offer the right balance of strength, corrosion resistance, and wear resistance. Common materials used in serrated lock washers include:

1. Carbon Steel: Carbon steel is often used for serrated lock washers due to its affordability and high tensile strength. These washers are suitable for general-purpose applications where corrosion resistance is not a critical requirement.

2. Stainless Steel: For applications exposed to moisture, chemicals, or high temperatures, stainless steel serrated lock washers are preferred. Stainless steel offers excellent resistance to rust and corrosion, making it ideal for use in marine, food processing, and medical applications.

3. Alloy Steel: Alloy steel serrated lock washers are designed to withstand higher levels of stress and wear. They are commonly used in heavy-duty applications such as construction, mining, and automotive, where durability and long-term performance are essential.

4. Brass: Brass serrated lock washers are ideal for applications requiring electrical conductivity or resistance to corrosion. They are often used in electrical and electronic systems, as well as in situations where non-ferrous metals are required.

5. Plastic and Composite Materials: In some industries, serrated lock washers made from plastic or composite materials are used to provide insulation or corrosion resistance in lightweight applications, particularly in electronics or electrical components.

Benefits of Serrated Lock Washers

1. Increased Resistance to Vibration: One of the primary benefits of serrated lock washers is their ability to resist loosening caused by vibrations or shocks. The serrated edges create a mechanical lock that prevents the fastener from rotating, which is crucial in applications with constant motion or exposure to external forces.

2. Durability and Longevity: Serrated lock washers provide long-lasting performance by distributing the load across the fastener and the connected material. This reduces the risk of damage to both the fastener and the surrounding components, extending the life of the assembly.

3. Ease of Use: Serrated lock washers are simple to install and do not require additional locking mechanisms such as thread adhesives, nuts, or split rings. This makes them a convenient and cost-effective solution for securing fasteners in a wide range of applications.

4. Improved Safety: By preventing fasteners from loosening, serrated lock washers enhance the safety and reliability of machinery, vehicles, and structural systems. This is especially important in industries where failure of a fastener could lead to costly repairs, downtime, or safety hazards.

5. Compact and Efficient: Serrated lock washers offer a compact solution for locking fasteners, saving space while providing an effective locking mechanism. This is particularly valuable in applications with limited space or where other locking methods would be impractical.

Applications of Serrated Lock Washers

Serrated lock washers are used in a wide range of industries and applications where secure fastening is essential. Some of the key areas where they are commonly used include:

1. Automotive: In the automotive industry, serrated lock washers are used to secure bolts and nuts in engine parts, suspension systems, and chassis components. Their vibration-resistant properties make them ideal for use in vehicles that experience frequent motion and stress.

2. Construction: Serrated lock washers are widely used in construction to secure structural components such as beams, columns, and frames. They are also used in concrete fastening applications to ensure the longevity of connections in buildings and bridges.

3. Aerospace: In aerospace, where safety and performance are critical, serrated lock washers are used to secure parts in aircraft engines, landing gear, and fuselage assemblies. Their ability to resist loosening under vibration makes them essential for ensuring the reliability of aircraft components.

4. Electronics and Electrical Systems: In electronic and electrical systems, serrated lock washers are used to secure components in devices, connectors, and circuits. They are especially useful in preventing fastener loosening in high-vibration environments, such as motors or electronic devices exposed to regular movement.

5. Industrial Machinery: In industrial machinery, serrated lock washers help secure fasteners in heavy-duty equipment, such as pumps, compressors, and conveyor systems. Their resistance to vibration and wear ensures that the machinery operates smoothly without the risk of fasteners loosening over time.

Best Practices for Using Serrated Lock Washers

To ensure optimal performance from serrated lock washers, it’s important to follow these best practices:

1. Proper Sizing: Ensure the serrated lock washer is the correct size for the fastener and application. Using washers that are too small or too large can reduce the locking effectiveness and cause issues with the fastener connection.

2. Installation Techniques: When installing serrated lock washers, make sure that the serrations are facing the correct direction. Internal serrations should be in contact with the fastener threads, while external serrations should be in contact with the material being secured.

3. Avoid Over-tightening: While serrated lock washers provide resistance to loosening, over-tightening the fastener can damage the washer or reduce its effectiveness. Follow the manufacturer’s torque specifications to ensure proper installation.

4. Regular Inspections: Regularly inspect serrated lock washers for signs of wear, especially in high-stress or high-vibration applications. Replace washers that show signs of deformation or damage to maintain secure and reliable connections.

Conclusion

Serrated lock washers are an essential component for ensuring secure and reliable fastener connections in high-vibration environments. Their unique serrated design provides superior resistance to loosening, making them ideal for use in automotive, construction, aerospace, and industrial applications. By selecting the right material and following best practices for installation and maintenance, serrated lock washers can enhance the safety, longevity, and performance of any fastened connection.
