Retaining rings play a critical role in many fastening applications, providing a secure and efficient solution for retaining components in assemblies. These simple, yet highly effective, fasteners are used in various industries such as automotive, aerospace, electronics, and manufacturing to prevent axial movement of components on shafts or in housings. This article explores the types of retaining rings, their materials, and their specific applications, helping engineers and designers select the best option for their needs.

What Are Retaining Rings?

Retaining rings, also known as circlips, are metal fasteners used to securely hold components in place. They fit into grooves on a shaft or housing and act as a shoulder to prevent the movement of parts. These rings are typically used in rotating assemblies like motors, bearings, and gear systems, where axial movement must be controlled.

Manufactured from durable materials such as carbon steel, stainless steel, or phosphor bronze, retaining rings are designed to endure high loads and challenging environments. Their simple design allows for easy installation and removal, making them a preferred choice in assemblies where frequent adjustments or maintenance are required.

Types of Retaining Rings

Several types of retaining rings are available, each suited for different applications:

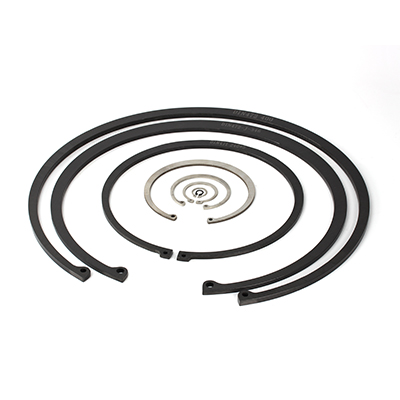

1. Internal Retaining Rings: These are placed inside a bore or housing to secure components such as bearings or seals. The internal ring applies outward pressure to hold the components in place. They are commonly used in applications like hydraulic systems and valve assemblies.

2. External Retaining Rings: Designed to fit over a shaft, these rings provide radial force to retain components on the outside. External retaining rings are often used in automotive transmissions, motors, and other mechanical systems where external retention is required.

3. E-Clips: E-clips are a type of external retaining ring that can be installed and removed easily without needing special tools. Their unique E-shaped design makes them ideal for applications that require quick assembly or disassembly, such as in electronics or small machinery.

4. Spiral Retaining Rings: Made from flat wire coiled into multiple turns, spiral retaining rings offer a continuous 360° contact with the shaft or bore, providing a more uniform and secure grip. They are ideal for heavy-duty applications like aerospace and industrial machinery, where strength and stability are critical.

Key Applications of Retaining Rings

Retaining rings are used across a wide range of industries due to their versatility and ability to provide reliable component retention. Some of the most common applications include:

• Automotive Industry: Retaining rings are essential in the automotive sector, where they are used in gearboxes, steering systems, and transmissions to ensure proper alignment and retention of moving parts. Their ability to withstand high loads and vibration makes them suitable for these demanding applications.

• Aerospace: In aerospace engineering, retaining rings are critical for securing components in flight systems, landing gear, and actuators. The lightweight and durable nature of stainless steel or titanium retaining rings helps reduce overall system weight while ensuring reliable performance in extreme environments.

• Electronics: In the electronics industry, retaining rings are used in small devices and appliances to secure components like shafts, bearings, and pulleys. E-clips are particularly popular in this sector due to their ease of installation and removal.

• Industrial Machinery: Heavy-duty machinery often relies on retaining rings to secure parts like gears, sprockets, and bearings. Spiral retaining rings are particularly well-suited for these applications, as they provide superior strength and stability in high-torque environments.

Choosing the Right Retaining Ring

When selecting a retaining ring, it’s essential to consider the material, type, and size to ensure optimal performance. The material choice is often dictated by the application’s environment; for example, stainless steel is ideal for corrosive environments, while carbon steel offers superior strength for heavy-duty applications. Proper sizing is also critical, as an incorrectly sized ring may fail to provide adequate retention.

Additionally, the ease of installation and removal should be considered, especially in applications requiring regular maintenance. Some retaining rings, like E-clips, allow for quicker installation, while others, like spiral rings, may require special tools but offer a more secure fit.

In conclusion, retaining rings are indispensable fasteners in many industries due to their simple design and robust performance. By understanding the different types of retaining rings and their applications, engineers and manufacturers can ensure that their assemblies are secure, reliable, and efficient.
