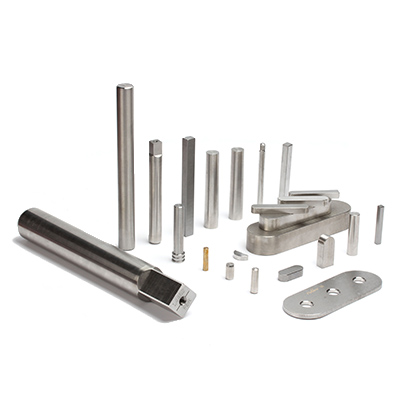

Pins and keys are essential mechanical connectors used in a variety of applications to ensure secure alignment and assembly of components. These small yet critical fasteners play a pivotal role in transmitting torque, holding parts in place, and allowing for smooth operation in everything from automotive engines to industrial machinery. In this article, we will explore the types of pins and keys, their primary functions, and how they contribute to the performance and durability of mechanical systems.

The Role of Pins in Mechanical Connections

Pins are cylindrical fasteners designed to hold components in a fixed position or to allow controlled movement. They are typically used in rotating assemblies, where parts need to be securely aligned or allowed to pivot. Common types of pins include dowel pins, cotter pins, taper pins, and spring pins, each serving distinct purposes based on their design and material.

1. Dowel Pins: Dowel pins are precision-engineered cylindrical pins used for accurate alignment of two or more components. They are commonly used in machinery, tools, and structural applications where maintaining exact positioning is critical. Dowel pins are typically made from steel or stainless steel and are inserted into pre-drilled holes to ensure perfect alignment between parts.

2. Cotter Pins: Cotter pins, also known as split pins, are designed to secure other fasteners like bolts or nuts by passing through a hole in the shaft and then being bent to lock it in place. Cotter pins are used in low-load applications such as securing wheel hubs, connecting rods, and other rotating elements where removal and reinstallation are frequent.

3. Taper Pins: Taper pins have a gradually decreasing diameter, allowing them to be wedged securely into place. They are typically used in mechanical assemblies to prevent axial movement and maintain alignment. Due to their tapered shape, they provide a tight, reliable fit, ideal for high-load applications in industrial equipment.

4. Spring Pins: Also known as roll pins or tension pins, spring pins are hollow, slotted pins that compress when inserted into a hole and then expand to fit tightly. They provide excellent retention in assemblies that require flexibility and resistance to vibration. Spring pins are often used in automotive systems, lawn equipment, and various mechanical devices.

The Functions of Keys in Mechanical Systems

Keys are flat, rectangular fasteners used to connect rotating machine elements like shafts and gears. Their main function is to transmit torque between components and ensure the proper alignment of rotating parts. Keys are inserted into matching keyways—slots machined into both the shaft and the rotating element—creating a secure fit that prevents slippage.

1. Parallel Keys: Parallel keys are the most common type, with a uniform cross-section that fits into keyways of equal width. These keys are used to transmit high levels of torque in machinery such as motors, pumps, and gearboxes. Parallel keys ensure that gears or pulleys rotate in unison with the shaft, providing reliable power transmission.

2. Woodruff Keys: These semi-circular keys fit into a curved slot in the shaft, offering a self-aligning feature that makes them ideal for high-speed applications. Woodruff keys are commonly used in automotive engines and machine tools, where precise alignment is crucial. Their unique shape allows them to absorb shock loads and prevent loosening over time.

3. Tapered Keys: Tapered keys, much like taper pins, have a slight angle, which ensures a tight fit when inserted into the keyway. The taper helps to secure the rotating part onto the shaft and prevents movement, even in high-torque environments. These keys are often used in heavy-duty machinery where the connection between the shaft and component needs to be particularly strong and resistant to wear.

Key Applications for Pins and Keys

Pins and keys are indispensable in numerous industries, from automotive manufacturing to aerospace engineering. Their versatility and ability to provide secure connections make them ideal for applications requiring precise alignment and torque transmission.

• Automotive Industry: In automotive applications, cotter pins are commonly used to secure wheel hubs and tie rod ends, while dowel pins ensure the proper alignment of engine components. Keys, particularly Woodruff keys, are essential for securing crankshafts and other rotating parts, ensuring smooth power transmission.

• Aerospace and Defense: In aerospace, the use of spring pins and dowel pins is common for securing critical components in landing gear and flight control systems. The reliability of pins in harsh environments is vital for maintaining the integrity of the assembly under extreme conditions.

• Industrial Machinery: Industrial equipment relies heavily on the use of parallel keys and taper keys to transmit torque between shafts and gears. These keys ensure that the machinery operates efficiently and reliably, reducing the risk of component failure due to slippage or misalignment.

• Robotics and Automation: In robotics, precision is key. Dowel pins and spring pins are often used to align mechanical parts within robotic arms and automated systems. Their ability to maintain consistent alignment under repetitive motion and vibration is crucial for the smooth operation of these advanced systems.

Conclusion: Enhancing Mechanical Performance with Pins and Keys

Pins and keys may be small, but they play an essential role in mechanical assemblies. Their ability to secure, align, and transmit torque between components ensures the smooth and efficient operation of machinery in a wide range of industries. By understanding the different types of pins and keys, and selecting the appropriate fastener for each application, engineers can significantly improve the reliability and performance of their systems.
