Introduction to Self-Clinching Nuts

Self-clinching nuts are widely used in the fastener industry for creating strong, durable threaded connections in materials that are too thin to support traditional threaded inserts. These fasteners are essential in applications where access to both sides of the material is limited, such as in sheet metal work, electronics, and automotive manufacturing. Self-clinching nuts work by permanently embedding themselves into a substrate, providing a secure anchor point for screws or bolts.

In this article, we will explore how self-clinching nuts work, their types, applications, and the advantages they offer in various industrial and commercial settings. Whether you’re new to self-clinching nuts or looking to optimize their use in your projects, this guide will provide you with valuable insights into how these fasteners function and how they can benefit your operations.

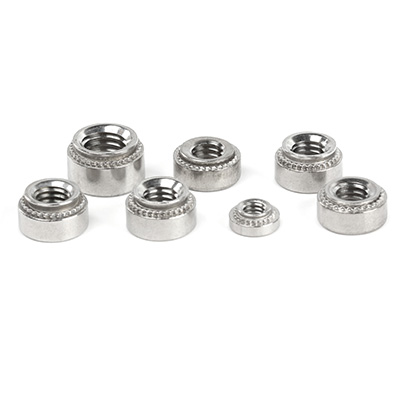

What Are Self-Clinching Nuts?

A self-clinching nut is a type of fastener designed to create a strong, permanent thread in thin materials, such as sheet metal or plastic. The unique feature of self-clinching nuts is their ability to be installed from one side of the material, making them ideal for applications where access to both sides is limited or not possible. They are often used in applications that require secure, reliable threads without the need for welding, tapping, or drilling.

The design of a self-clinching nut includes a flange that sits against the surface of the material, while the nut body is compressed or clinched into the material when installed. This creates a solid, permanent grip that holds the nut in place, allowing it to accept a screw or bolt without loosening or stripping over time.

How Do Self-Clinching Nuts Work?

The installation process of self-clinching nuts is relatively straightforward, and understanding how they work can help ensure that you use them correctly for maximum performance.

1. Preparation of the Material: To install a self-clinching nut, the material (usually thin sheet metal or plastic) must be drilled with a hole that corresponds to the size of the nut. This hole should be precise to ensure the nut fits properly. The hole should be slightly larger than the body of the nut but smaller than the flange.

2. Placement of the Nut: After the hole is prepared, the self-clinching nut is inserted into the hole. The nut should be placed with its flange against the surface of the material, ensuring that the nut is correctly aligned before installation.

3. Clinch Process: The self-clinching nut is then installed using a specialized tool, such as a press, pneumatic tool, or manual clinching tool. The tool applies pressure to the nut, causing the nut’s body to deform and embed itself into the material. As the nut is clinched, the material surrounding the nut is displaced, creating a tight, permanent grip around the body of the nut.

4. Formation of the Thread: Once the nut is clinched into place, the material around the nut forms a strong, permanent grip. The nut’s internal threads are now ready to accept a bolt or screw. The resulting thread is durable and resistant to stripping, providing a long-lasting fastening solution.

5. Resulting Fastening Point: The self-clinching nut creates a secure thread that is firmly anchored in place, allowing bolts or screws to be inserted and tightened without the risk of the nut loosening or failing. This makes self-clinching nuts ideal for applications that require a reliable fastening point in thin materials.

Types of Self-Clinching Nuts

There are several different types of self-clinching nuts, each designed for specific applications. The most common types include:

1. Flush Mount Self-Clinching Nuts: These nuts are designed to sit flush with the surface of the material once installed. This makes them ideal for applications where a smooth surface is required, such as in electronic housings or automotive panels.

2. Extra-Thin Self-Clinching Nuts: These nuts are specifically designed for use with very thin materials. They are ideal for applications where space is limited, and the material cannot support traditional fasteners.

3. Self-Clinching Nuts with Serrated Flanges: Some self-clinching nuts feature serrated flanges that provide additional grip and prevent the nut from rotating during installation. These are commonly used in applications where vibration or movement may cause loosening.

4. Miniature Self-Clinching Nuts: These are smaller versions of standard self-clinching nuts, used in applications that require compact fasteners, such as in electronics or small machinery.

5. Heavy-Duty Self-Clinching Nuts: These nuts are designed for high-strength applications and can be used with thicker materials. They are typically used in industrial applications where high torque and load-bearing capacities are required.

Applications of Self-Clinching Nuts

Self-clinching nuts are used in a wide variety of industries due to their ability to create strong, reliable threads in thin or hard-to-reach materials. Some of the primary applications include:

1. Electronics: Self-clinching nuts are often used in electronics manufacturing, where they create secure fastening points in thin metal or plastic enclosures. They are essential for providing secure connections for circuit boards, covers, and other electronic components.

2. Automotive: In the automotive industry, self-clinching nuts are used to attach components to body panels and other thin sheet metal parts. They provide strong, permanent threads that hold up to the vibrations and stresses found in automotive applications.

3. Aerospace: Self-clinching nuts are used in aerospace applications where lightweight, durable fastening solutions are required. These nuts are ideal for use in aircraft panels, instrumentation, and structural components.

4. Construction and Manufacturing: In construction and manufacturing, self-clinching nuts provide reliable fastening solutions for metal parts, machinery, and equipment. They are particularly useful for creating threaded fastening points in thin sheet metal without the need for welding or tapping.

5. Medical Equipment: Self-clinching nuts are used in the manufacturing of medical devices, where precise, secure fastening is critical. These nuts help to ensure that components are securely attached and that the device functions safely and effectively.

Advantages of Using Self-Clinching Nuts

Self-clinching nuts offer several key advantages that make them a preferred fastening solution in various industries:

1. Space-Saving: Self-clinching nuts are ideal for applications with limited space, as they can be installed without the need for access to both sides of the material. This makes them perfect for use in tight or confined spaces.

2. Quick and Easy Installation: Self-clinching nuts can be installed quickly and easily using specialized tools, reducing the time and labor required for assembly. This makes them an efficient solution for high-volume production runs.

3. Strong, Permanent Threads: Once installed, self-clinching nuts provide strong, durable threads that are resistant to stripping, making them ideal for applications that require reliable fastening points over time.

4. Versatility: Self-clinching nuts are available in a variety of sizes and designs, making them versatile enough to be used in a wide range of applications, from electronics to automotive and aerospace.

5. No Need for Additional Hardware: Since self-clinching nuts are installed directly into the material, they eliminate the need for additional hardware like washers or anchors, simplifying the assembly process.

Best Practices for Using Self-Clinching Nuts

1. Ensure Proper Hole Size: To achieve a secure, reliable connection, it’s crucial to drill the correct hole size for the self-clinching nut. Follow the manufacturer’s specifications to avoid issues with installation.

2. Use the Right Installation Tool: Use the appropriate clinching tool for your application to ensure the nut is securely installed. This will help prevent damage to the material or the fastener.

3. Choose the Right Type of Nut: Select the appropriate self-clinching nut for your material thickness and application needs. This will ensure a secure, lasting connection.

4. Inspect the Installation: After installation, inspect the rivet nut to ensure that it has been properly clinched and is securely embedded in the material.

Conclusion

Self-clinching nuts are an efficient, reliable solution for creating strong, permanent threads in thin materials. By understanding how they work, choosing the right type for your application, and following best practices for installation, you can optimize the performance of your fasteners and ensure secure, durable connections in your projects. Whether you’re working in electronics, automotive, aerospace, or construction, self-clinching nuts offer the flexibility, strength, and efficiency needed for modern fastening applications.
