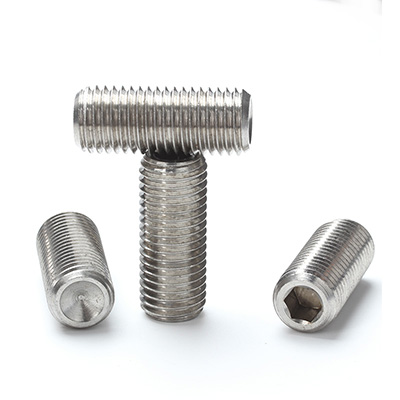

DIN 916 hexagon socket set screws with cup point are an essential component in precision fastening applications. Known for their secure grip and robust design, these screws are widely used across industries where a strong, vibration-resistant hold is crucial. In this article, we’ll explore the features, benefits, and applications of DIN 916 hexagon socket set screws, with a focus on their cup point design, making them ideal for mechanical and industrial use.

What Are DIN 916 Hexagon Socket Set Screws with Cup Point?

DIN 916 hexagon socket set screws, also known as grub screws, are fasteners without a protruding head, designed to be installed flush with or below the surface of the material. The screw's key feature is its cup point tip—a concave end designed to apply maximum pressure to the contact surface. This provides a tight, secure grip, making these screws perfect for holding components in place.

The hexagon socket allows for easy installation with an Allen key or hex wrench, providing high torque and preventing slippage during assembly. These set screws are manufactured according to DIN standards, ensuring consistent quality and performance across a wide range of applications.

Key Features and Benefits of DIN 916 Hexagon Socket Set Screws

1. Cup Point Design for Secure Grip: The cup point creates a strong locking force by penetrating the surface of the mating material, increasing holding power. This makes the screws ideal for preventing movement or loosening in applications where components experience vibration or shifting forces.

2. Headless Design for a Flush Fit: The absence of a protruding head allows these set screws to be installed completely flush or even countersunk into the material, offering a clean and unobtrusive appearance. This feature is particularly useful in applications where space is limited, or where protruding fasteners could cause interference with moving parts.

3. Hexagon Socket for Easy Installation: The hexagon socket design allows for easy installation using an Allen key, ensuring a tight fit and high torque application without damaging the fastener. This design reduces the risk of slippage or stripping, providing reliable performance in high-stress situations.

4. Durable Materials and Coatings: DIN 916 hexagon socket set screws are made from high-quality materials like stainless steel, alloy steel, and carbon steel. Depending on the application, these screws may also be coated with protective finishes such as zinc plating or black oxide to enhance corrosion resistance and extend the life of the fastener in harsh environments.

Applications of DIN 916 Hexagon Socket Set Screws with Cup Point

DIN 916 hexagon socket set screws with cup points are highly versatile and find use in a wide variety of industrial and mechanical applications. Some of the most common uses include:

1. Machinery and Equipment: These set screws are frequently used to secure pulleys, gears, and collars to shafts. The cup point design ensures that the screws maintain a firm grip even under high levels of vibration and movement, making them ideal for applications in industrial machinery and equipment.

2. Electronics and Robotics: In delicate applications like electronics assembly and robotics, DIN 916 set screws provide a secure fastening solution without the need for bulky fasteners. Their compact, headless design ensures that components stay in place while allowing for precise adjustments and alignments.

3. Automotive Industry: Set screws are often employed in the automotive sector to secure internal components, such as securing sensors, actuators, or various small parts within the vehicle’s engine or transmission system. The ability to install them flush with the surface minimizes interference with other parts.

4. Furniture and Fixtures: In furniture assembly, these screws are used to secure joints and fittings without compromising the aesthetic design. The flush fit of the DIN 916 set screw ensures a seamless finish, making them ideal for modern, minimalist designs where visible fasteners may detract from the overall appearance.

How to Choose the Right DIN 916 Hexagon Socket Set Screws for Your Application

When selecting DIN 916 hexagon socket set screws with cup points for your project, it’s important to consider several factors to ensure optimal performance and longevity. Here are a few key considerations:

• Material and Coating: Depending on the environmental conditions, choose the appropriate material and coating for the screws. For example, stainless steel provides excellent corrosion resistance, while alloy steel offers higher strength for heavy-duty applications.

• Thread Size and Length: The correct thread size and length should be selected based on the material thickness and the level of torque required. Be sure that the screw’s cup point is capable of providing the necessary holding force without causing excessive damage to the surface.

• Torque Requirements: Consider the amount of torque needed for your specific application. DIN 916 set screws are designed to handle high torque without stripping or loosening, but selecting the proper size ensures maximum performance.

• Application Environment: If your application involves exposure to moisture, chemicals, or extreme temperatures, selecting the appropriate material and coating becomes critical for ensuring the durability and lifespan of the screws.

Conclusion: The Versatility and Reliability of DIN 916 Hexagon Socket Set Screws with Cup Point

DIN 916 hexagon socket set screws with cup point are a highly effective solution for a variety of industrial and mechanical fastening needs. Their secure grip, flush fit, and ease of installation make them ideal for applications requiring reliable performance under challenging conditions. Whether you're securing components in heavy machinery, assembling electronics, or working on automotive systems, these set screws provide the strength and durability you need for long-lasting performance.

Explore our range of DIN 916 hexagon socket set screws with cup point on our fastener marketplace today and find the right solution for your next project.
