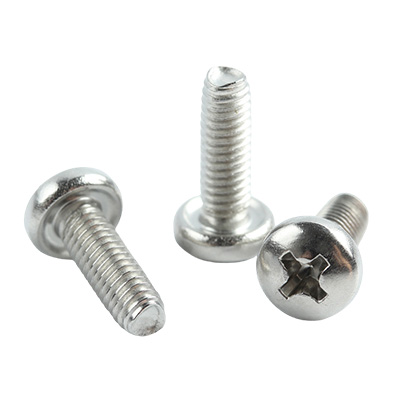

Introduction to Thread Rolling Screws

Thread rolling screws are a type of fastener that features threads formed through the process of rolling rather than cutting. This unique manufacturing process enhances the strength and durability of the screw, making it ideal for use in applications where high-performance fastening is crucial. Commonly used in automotive, aerospace, electronics, and construction industries, thread rolling screws provide significant advantages over traditional screws made through cutting processes.

In this article, we will explore how thread rolling screws are made, their advantages over other fasteners, and the various industries where they are used. Additionally, we will provide insights into selecting the right thread rolling screws for your specific applications.

How Are Thread Rolling Screws Made?

The manufacturing process of thread rolling screws involves a specific technique known as "cold heading" followed by "thread rolling." The process is designed to create high-strength threads while maintaining the screw’s integrity, even under stress. Here's a closer look at how thread rolling screws are produced:

1. Cold Heading: The first step in manufacturing thread rolling screws is cold heading, a process where a metal wire is cut into small lengths, which are then fed into a machine. The machine applies pressure to form the head of the screw without the use of heat. This process is advantageous because it preserves the material's strength, reducing the likelihood of weakening or distortion during the shaping process.

2. Thread Rolling: After the screw head is formed, the screw body is fed into a pair of rotating dies, which apply pressure to form threads by rolling the material. Unlike traditional screw-cutting methods, thread rolling does not remove material but instead displaces it to create precise and durable threads. This results in a screw that has superior strength, with the threads being more resistant to wear and tear.

3. Heat Treatment: Once the threads are rolled, the screws undergo heat treatment, which involves heating the fasteners to high temperatures and then rapidly cooling them to increase their hardness. This step is essential for ensuring the screws perform well in demanding applications where they are subject to high stresses.

4. Surface Treatment and Finishing: After heat treatment, thread rolling screws may undergo additional processes such as plating or coating to enhance their corrosion resistance and appearance. Common coatings include zinc, nickel, and phosphate, depending on the application requirements. These treatments protect the screws from environmental factors such as moisture, chemicals, and abrasion.

5. Quality Control and Inspection: Given the precision required in thread rolling screws, quality control is a critical part of the manufacturing process. The screws are inspected for dimensions, thread quality, and overall strength. Advanced measurement tools and automated systems are used to ensure the fasteners meet strict specifications before they are shipped for use.

Advantages of Thread Rolling Screws

Thread rolling screws offer several key benefits over conventional fasteners, making them a preferred choice in many industries. Some of the major advantages include:

1. Increased Strength: The thread rolling process creates stronger threads than cutting methods, as it preserves the grain structure of the material and compacts the metal, resulting in improved tensile strength. This makes thread rolling screws ideal for applications that require high strength and durability.

2. Better Fatigue Resistance: The cold working process used in thread rolling increases the fatigue resistance of the screw. This makes these fasteners ideal for use in high-vibration environments, such as automotive engines or machinery, where screws are subjected to repeated stress cycles.

3. Reduced Risk of Thread Damage: Since thread rolling does not involve material removal, the threads are less likely to be damaged during production. This results in screws with cleaner, more precise threads that can better withstand torque and provide a tighter fit.

4. Cost-Effective Manufacturing: While thread rolling screws may have a higher initial production cost compared to screws made using cutting methods, the overall cost is often lower due to the process’s efficiency and the screws’ extended lifespan. The enhanced strength and durability of the screws can also reduce the need for replacements and maintenance over time.

5. Enhanced Corrosion Resistance: Thread rolling screws are often treated with surface coatings that provide excellent corrosion resistance. This makes them ideal for use in industries such as construction, automotive, and marine, where exposure to harsh environmental conditions is common.

Applications of Thread Rolling Screws

Thread rolling screws are versatile and widely used in a range of industries that require strong, durable, and precise fasteners. Here are some of the primary applications for thread rolling screws:

1. Automotive Industry: In automotive manufacturing, thread rolling screws are used to secure critical components in engines, chassis, and other high-stress parts. The strength and fatigue resistance of these screws ensure they perform reliably even under extreme conditions.

2. Aerospace: The aerospace industry demands fasteners that can withstand high levels of stress and environmental factors such as temperature variations and corrosion. Thread rolling screws are commonly used in aircraft assembly, where precision and reliability are non-negotiable.

3. Electronics: Thread rolling screws are frequently used in the electronics industry to secure circuit boards, connectors, and other components. Their precision and strength are essential for ensuring the integrity of sensitive electronic devices.

4. Construction: In the construction industry, thread rolling screws are used in structural applications, such as fastening steel beams, metal framing, and other heavy-duty applications. The high strength and durability of these screws ensure that the structures remain secure over time.

5. Medical Devices: Thread rolling screws are often used in medical device manufacturing due to their precision, strength, and resistance to corrosion. Applications include fastening components in medical instruments, implants, and devices where reliability is essential.

Selecting the Right Thread Rolling Screw for Your Application

When choosing thread rolling screws, it is important to consider the specific requirements of your application. Factors to take into account include:

1. Material: Depending on the environment and stresses the screw will be subjected to, choose the appropriate material (e.g., stainless steel for corrosion resistance, alloy steel for strength, etc.).

2. Size and Thread Pitch: Ensure that the thread size and pitch match your application’s needs for a secure fit.

3. Coating and Surface Treatment: If your screws will be exposed to moisture, chemicals, or high temperatures, choose a coating or surface treatment that will enhance their durability and resistance to corrosion.

4. Strength Requirements: Consider the load-bearing requirements of your application. Thread rolling screws are generally stronger than screws made through cutting, but it is essential to match the screw’s specifications to the forces it will encounter.

Conclusion

Thread rolling screws are an essential component in various industries where strength, precision, and durability are key. The process of thread rolling offers numerous advantages, including enhanced thread quality, increased strength, and better fatigue resistance. These fasteners are especially valuable in high-performance applications in automotive, aerospace, electronics, construction, and medical industries.

By understanding how thread rolling screws are made and their benefits, businesses and engineers can make informed decisions when selecting fasteners for their projects.
