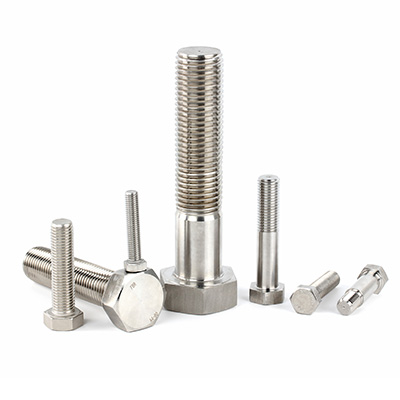

Stainless steel hex bolts are widely used in a variety of industries, from construction and automotive to electronics and marine applications. One critical aspect to consider when choosing stainless steel hex bolts is the measurement system: metric or imperial. While both types of bolts serve similar purposes, their differences in sizing, thread design, and application can significantly impact performance and compatibility. In this article, we explore the key differences between metric and imperial stainless steel hex bolts to help you make an informed decision for your fastening needs.

Sizing Differences Between Metric and Imperial Hex Bolts

The most obvious difference between metric and imperial hex bolts lies in their sizing standards. Metric hex bolts are measured using the metric system (millimeters), while imperial bolts follow the United States customary system (inches). This distinction can create challenges when working with global supply chains or specific equipment that requires one standard over the other.

1. Metric Hex Bolts: Metric bolts are categorized by their nominal diameter (measured in millimeters) and thread pitch. For example, an M10 bolt has a 10mm diameter. The thread pitch refers to the distance between threads, and for metric bolts, this is also measured in millimeters. Fine and coarse thread pitches are available depending on the application.

2. Imperial Hex Bolts: In contrast, imperial bolts use inches to define their diameter and threads per inch (TPI) for thread pitch. A 3/8-inch bolt, for instance, has a diameter of 0.375 inches. TPI indicates how many threads fit within one inch of the bolt. Coarse threads are typically designated as UNC (Unified National Coarse), while fine threads are denoted as UNF (Unified National Fine).

Understanding these sizing differences is crucial when replacing or selecting bolts for machinery, as mixing metric and imperial bolts can lead to improper fit and mechanical issues.

Thread Design and Compatibility

Another key distinction between metric and imperial stainless steel hex bolts is their thread design. The thread angle, pitch, and depth can differ between the two systems, which directly affects their compatibility with nuts, washers, and tapped holes.

1. Metric Bolt Threads: Metric bolts generally have a thread angle of 60 degrees, which is standard for international applications. The pitch is expressed in millimeters and can vary between fine and coarse thread types. Fine threads are typically used in applications requiring greater precision and load-bearing capacity.

2. Imperial Bolt Threads: Imperial bolts also have a 60-degree thread angle, but the thread pitch is measured by threads per inch (TPI). This means that imperial bolts may have a higher or lower thread count compared to metric bolts, even when their diameters are similar. This difference in thread design means that metric and imperial bolts are not interchangeable unless specially adapted components are used.

Ensuring that you select the correct thread type for your application is vital to avoid mechanical failure, especially in high-stress environments such as aerospace, automotive, and construction industries.

Applications and Industry Standards

While both metric and imperial stainless steel hex bolts serve similar functions, their use is often dictated by industry standards and geographic location. Metric bolts are more commonly used in international markets, while imperial bolts are the standard in the United States and Canada.

1. Metric Applications: The metric system is widely adopted across Europe, Asia, and many other regions, making metric hex bolts the preferred choice for manufacturers and industries in these areas. Standards like ISO 4014 and ISO 4032 govern the specifications for metric bolts and nuts, ensuring consistency and compatibility across international projects.

2. Imperial Applications: In the United States, imperial bolts remain the standard, particularly in the automotive and construction sectors. SAE (Society of Automotive Engineers) and ASTM (American Society for Testing and Materials) standards govern the specifications for imperial bolts, such as ASTM A193 for stainless steel fasteners. Imperial bolts are also commonly used in industries with historical ties to the U.S. customary system, such as aviation and oil and gas.

When sourcing bolts for a project, it’s essential to adhere to the appropriate standards to ensure proper fit, function, and safety compliance. Mixing metric and imperial bolts can result in improper torque application, reduced load capacity, and premature wear or failure.

Choosing the Right Stainless Steel Hex Bolts for Your Project

Selecting the appropriate hex bolt for your project depends on several factors, including the load requirements, environmental conditions, and geographical location. Stainless steel hex bolts, whether metric or imperial, are prized for their corrosion resistance and durability, making them ideal for harsh environments such as marine and outdoor applications.

1. Corrosion Resistance: Stainless steel bolts are highly resistant to rust and corrosion, making them suitable for projects exposed to moisture, chemicals, and temperature extremes. Grades such as A2 and A4 stainless steel offer varying levels of corrosion resistance, with A4 providing superior protection in saltwater environments.

2. Load-Bearing Capacity: Both metric and imperial hex bolts are available in different grades, such as Grade 8.8, 10.9, and 12.9 for metric bolts, or Grade 5 and Grade 8 for imperial bolts. These grades indicate the tensile strength and load-bearing capacity of the bolts, which is a crucial factor in high-stress applications.

When selecting hex bolts, consider the specific demands of your application. For international projects or equipment sourced globally, metric bolts may be the more practical choice. For U.S.-based projects or where compatibility with imperial components is necessary, imperial bolts are the standard.

In conclusion, while metric and imperial stainless steel hex bolts serve the same essential function, their differences in sizing, thread design, and application standards make it important to choose the correct type for your project. By understanding these differences, you can ensure optimal performance, compatibility, and safety in your fastening solutions.
