E-rings, also known as E-clips or E-type clips, are vital fasteners widely used in mechanical and industrial systems to secure components onto shafts, axles, or inside grooves. These simple yet effective fasteners are designed to prevent axial movement of parts, ensuring that they remain in place and function smoothly during operation. Whether used in automotive, aerospace, construction, or medical applications, E-rings offer an efficient and cost-effective solution for securing parts with minimal space requirements. In this article, we’ll explore the types of E-rings, their applications, and how they provide reliable fastening solutions for various industries.

What Are E-Rings?

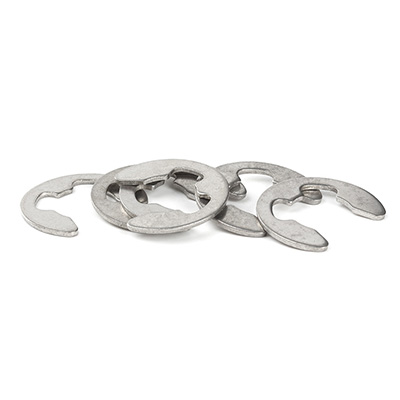

E-rings are a type of external retaining ring that fits into a groove on a shaft, axle, or other cylindrical components. Made from materials such as carbon steel, stainless steel, or alloy steel, E-rings are shaped like the letter "E," with two arms that spring outward to hold the ring in place once inserted into the groove. Their unique shape and design make them easy to install and remove, providing an excellent solution for securing components without the need for additional tools.

The primary function of E-rings is to prevent axial movement or dislodging of parts, ensuring that mechanical assemblies remain stable and reliable. They are particularly useful in applications where space is limited, and the fastener must fit securely around a small shaft or axle. E-rings are commonly used in industries where parts undergo constant movement or vibration, making them an ideal choice for demanding environments.

Types of E-Rings

There are several types of E-rings available, each designed for specific applications based on size, material, and performance requirements. The most common types include:

1. Standard E-Rings
   Standard E-rings are the most widely used type of E-ring fastener. They are typically made from carbon steel or stainless steel and come in a range of sizes to fit various shaft diameters. Standard E-rings are suitable for general-purpose applications, offering reliable performance in automotive, industrial, and electrical equipment.

2. Heavy-Duty E-Rings
   Heavy-duty E-rings are designed for high-load applications where additional strength and durability are required. These rings are often made from alloy steel or hardened materials to withstand greater forces and harsh conditions. Heavy-duty E-rings are ideal for use in construction machinery, agricultural equipment, and heavy industrial machinery where components experience significant stress and vibration.

3. Stainless Steel E-Rings
   Stainless steel E-rings are particularly useful in environments where corrosion resistance is a priority. These fasteners are ideal for use in marine, food processing, medical, and chemical industries, where exposure to moisture, chemicals, or high temperatures may otherwise cause standard E-rings to degrade. Stainless steel E-rings are known for their durability and resistance to rust and corrosion.

4. Non-Spring E-Rings
   Non-spring E-rings have a flat, non-expanding design. They are typically used in low-load or precision applications where the fastener needs to be tightly fitted without the spring action of traditional E-rings. These rings offer a more rigid solution for applications that do not require significant axial movement resistance but still need to prevent parts from sliding off a shaft.

Applications of E-Rings

E-rings are used in a wide variety of applications across many industries due to their versatility and simplicity. Some of the key applications include:

1. Automotive Industry
   E-rings are widely used in the automotive industry to secure components such as bearings, gears, and bushings in place within engines, transmissions, and differential assemblies. They help prevent parts from dislodging during high-speed operation, ensuring that the vehicle runs smoothly and safely. E-rings are also used in power steering systems, suspension components, and brake systems to maintain the integrity of critical assemblies.

2. Aerospace
   In the aerospace industry, where precision and reliability are paramount, E-rings are used to secure components in aircraft, spacecraft, and satellite systems. They are employed in applications where components experience frequent vibration or movement, such as in engine mounts, landing gear systems, and hydraulic systems. Stainless steel E-rings are often used in aerospace applications due to their ability to withstand harsh conditions and extreme temperatures.

3. Industrial Machinery
   E-rings are essential in the construction and maintenance of industrial machinery, where they are used to secure bearings, pulleys, gears, and other rotating or stationary parts. In equipment such as pumps, conveyors, and hydraulic systems, E-rings prevent components from shifting or coming loose, reducing the risk of mechanical failure and downtime. Heavy-duty E-rings are often used in industrial machinery to handle high loads and heavy-duty operation.

4. Medical Equipment
   The medical industry also makes extensive use of E-rings to secure components in devices such as surgical instruments, diagnostic machines, and imaging systems. Medical-grade E-rings are made from non-corrosive materials like stainless steel to ensure the safety and reliability of medical equipment. E-rings help maintain the stability and accuracy of precision devices, ensuring proper function during critical medical procedures.

5. Consumer Electronics
   E-rings are used in consumer electronics such as motors, pumps, and home appliances. These fasteners ensure that internal components remain securely in place, even under constant use. In motors or fans, for example, E-rings prevent the bearings and other moving parts from shifting, contributing to the longevity and efficiency of the device. Their compact design makes them ideal for small and space-constrained applications.

Why Choose E-Rings?

1. Space Efficiency
   E-rings offer a compact and efficient solution for securing components in applications where space is limited. Their simple, circular design allows them to fit into tight spaces, making them ideal for use in small or portable machinery. Whether you're working in automotive, robotics, or consumer electronics, E-rings provide a space-saving alternative to other fastening methods.

2. Ease of Installation
   One of the main advantages of E-rings is their ease of installation. These fasteners can be installed using basic tools or even by hand, eliminating the need for special equipment or training. This reduces labor costs and minimizes downtime during assembly and maintenance. Quick and simple installation also makes E-rings a cost-effective choice for manufacturers.

3. Durability and Longevity
   E-rings are made from durable materials such as stainless steel, carbon steel, or alloy steel, making them resistant to wear, corrosion, and fatigue. Their robustness ensures that they can handle demanding environments, including high-speed machinery, heavy industrial applications, and exposure to harsh chemicals or temperatures.

4. Cost-Effectiveness
   Compared to other types of fasteners, E-rings are a cost-effective solution for securing components in various systems. Their simplicity, ease of installation, and long service life contribute to their affordability, making them a popular choice for manufacturers looking to reduce costs while maintaining the reliability of their equipment.

5. Versatility
   E-rings come in a variety of sizes, materials, and designs, making them suitable for a wide range of applications. Whether you need a standard E-ring for general purposes or a heavy-duty version for high-load applications, E-rings can be tailored to meet your specific needs. Their versatility makes them an essential component in many industries, from automotive and aerospace to medical and industrial machinery.

Conclusion

E-rings are indispensable fasteners in a wide range of industries, offering an efficient, durable, and cost-effective solution for securing components in mechanical systems. Whether you're in automotive, aerospace, industrial machinery, or medical equipment, E-rings ensure that your components remain securely in place, even under harsh conditions. Their space efficiency, ease of installation, and versatility make them a preferred choice for many manufacturers. Explore our selection of high-quality E-rings on our fastener e-commerce platform to find the perfect fit for your next project.
